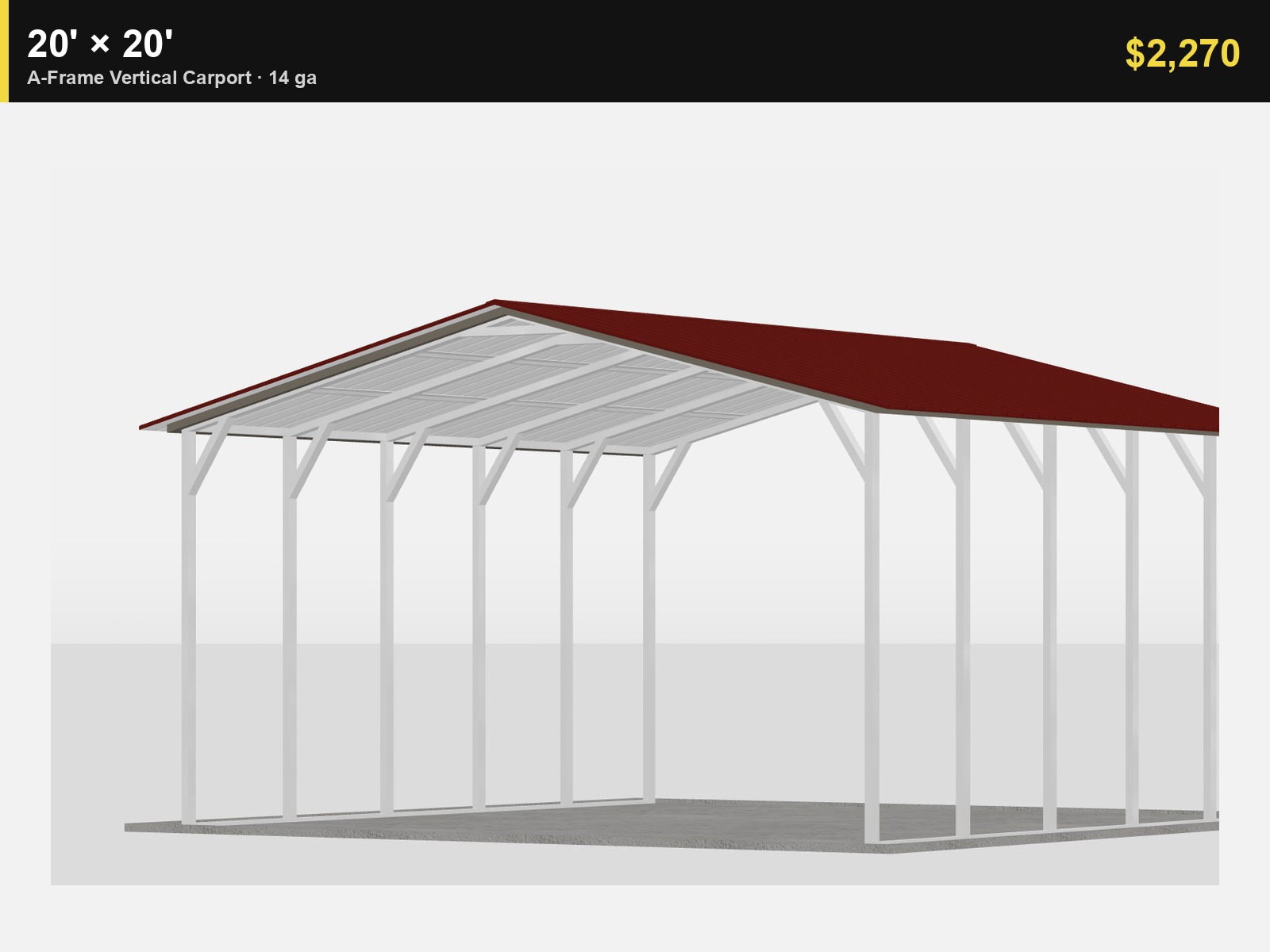

20′ x 20′ A-Frame Vertical Carport (14ga)

20′ wide × 20′ long A-Frame Vertical carport built with 14-gauge steel framing. Vertical roof panels run peak-to-eave so water, snow, and debris shed cleanly — a strong choice for Pacific Northwest weather.

This is an open carport: no side or end walls, so you can pull vehicles, boats, RVs, or equipment straight through. Serious Sheds will help match width, length, and leg height to what you store and your site.

List price $2,270 is the West Coast Metal Buildings OR/WA sheet base for this size (Vertical A-Frame, 14 ga, Rev. 09/2026). Taller legs, certification, gables, and enclosure options change the total — we confirm before you order.

• A-Frame Vertical roof style (standing seams run with the slope)
• 14-gauge tubular steel frame
• Open carport package — sides and ends open
• Standard 3/12 roof pitch
• Choice of standard metal colors for roof / trim
• Installation on your prepared, level site (confirm service area)

• Extra leg height (8′, 9′, 10′, 12′ and more)
• One or both sides closed · one or both ends closed
• Gable ends · extra bows · vapor barrier
• Roll-up doors, walk-in doors, and windows
• Wind / snow certification or engineered drawings where required
• Lean-tos and triple-wide configurations

20′ width is measured outside-to-outside on the base rails. 20′ length is the base-rail length (A-Frame Vertical roofs are flush with the rails).

Leave clearance beyond the building for install workspace (about 2′ around). Call out overhead lines, slope, and concrete vs. gravel before we schedule.

• Site must be squared and leveled before install
• Mark underground utilities where anchoring will occur
• Minimum ~2′ clear workspace around the structure
• Keep 10′+ from overhead power lines (or have lines de-energized)
• Anchoring method depends on concrete, asphalt, or ground

Serious Sheds installs across our PNW service area when the pad is ready. Ask about current lead times.

Sheet base for 20’×20′ open / 14 ga: $2,270. Sensei estimates add about $570 when configured at 10′ eave height.

Prices are estimates and can change with options, freight, certification, and manufacturer updates. Your Serious Sheds quote is the order authority.

Call or message Serious Sheds with your city, what you’re covering, and preferred colors. We’ll confirm size, height, options, and a firm installed quote.
